LITEON | GTC25
Powering a Bright and Sustainable Future Together
Date：2025/03/18 - 2025/03/21
San Jose McEnery Convention Center, CA, USA

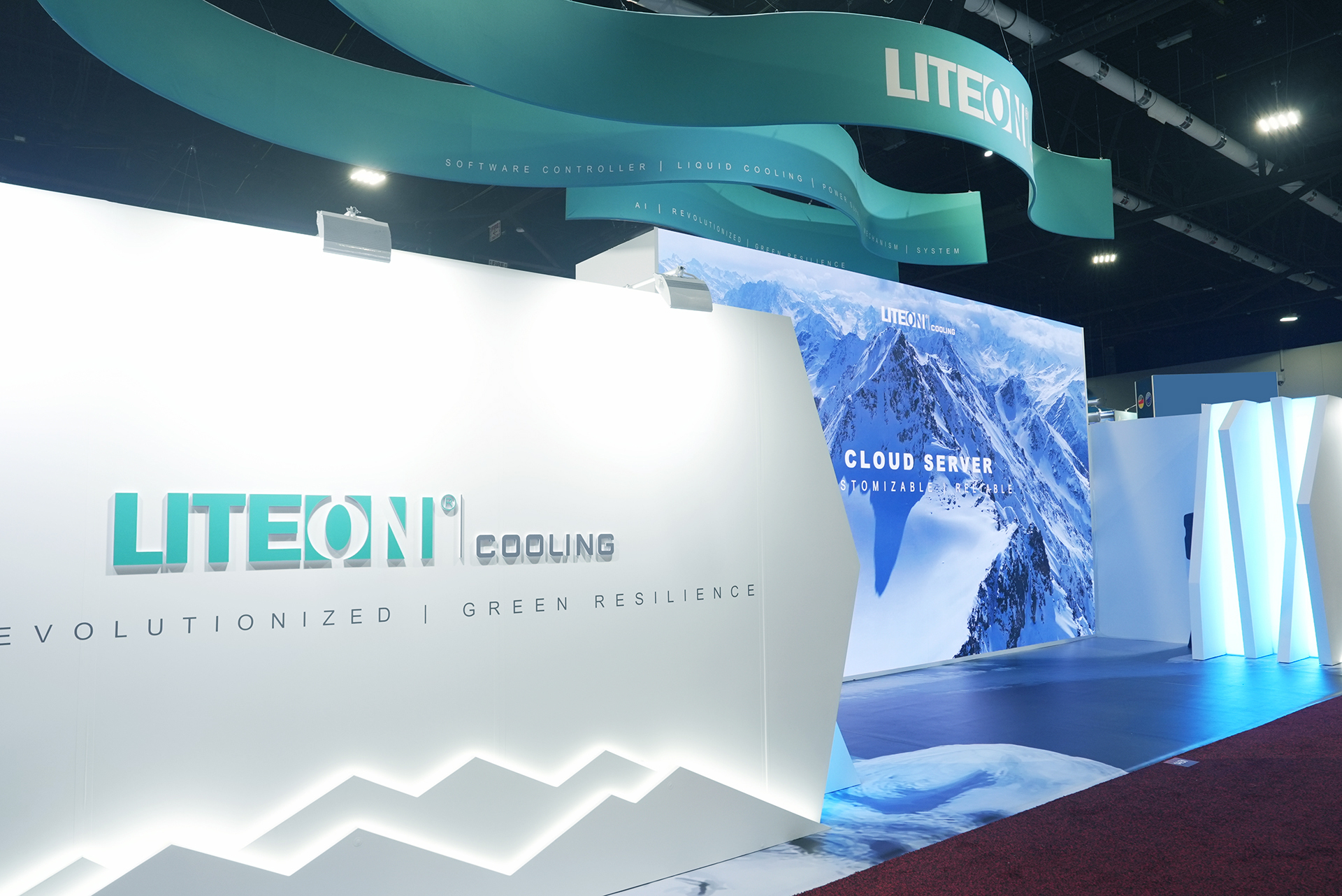

Booth: #1639
Booth Highlight
High-Performance Liquid Cooling Solutions
Enhance data center PUE, lower energy consumption, support high-density computing, extend the lifecycle of equipment, and achieve eco-friendliness and sustainability.
High-Efficiency Power Supplies
Compatible with ORV3 standards, enhance energy usage efficiency and ensures stable operation in AI applications.
High-Load Racks
Supports AI computing cores, meeting the AI application requirements of NVIDIA GB300/200 NVL72 platform.
LITEON Solutions

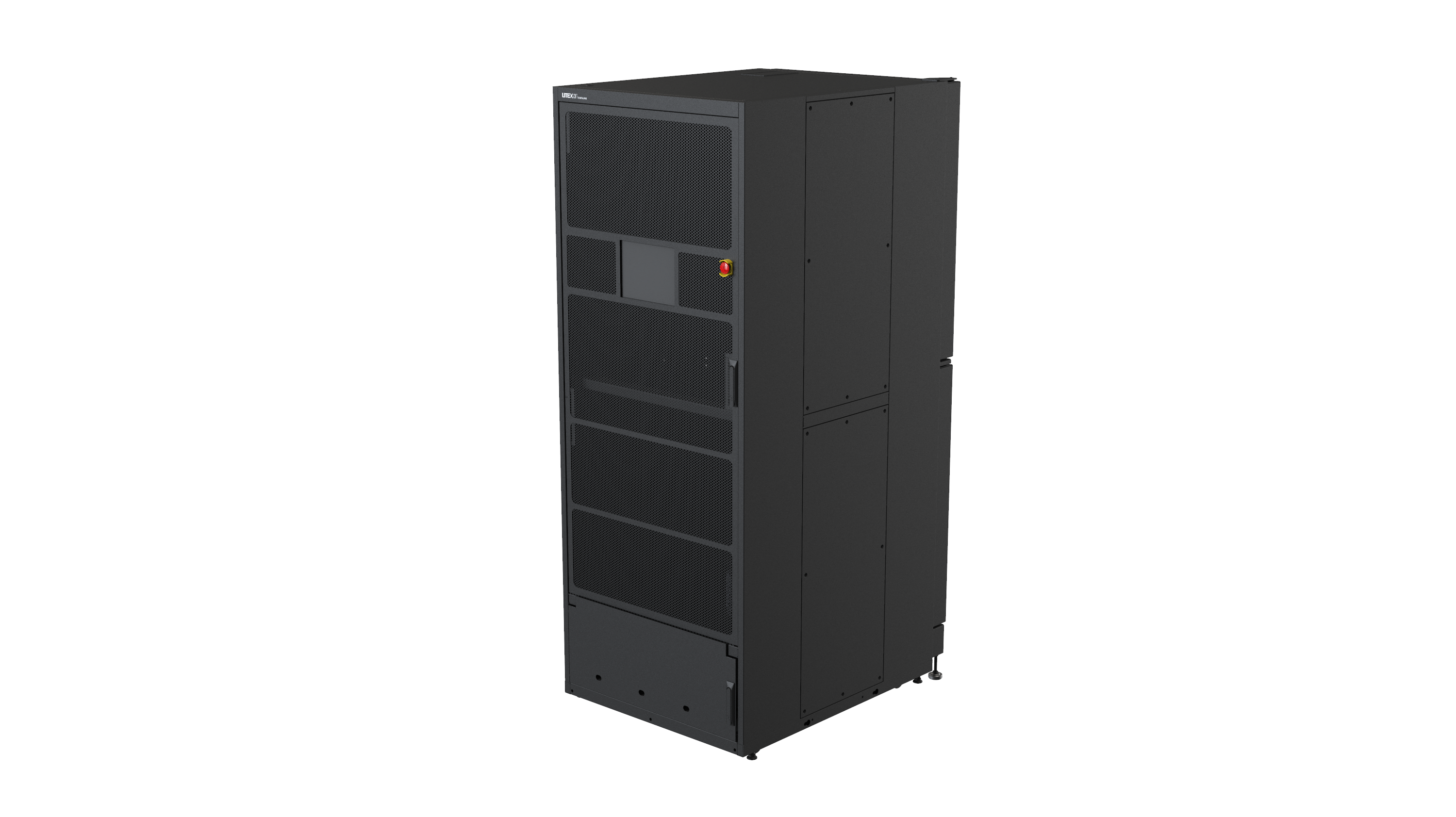

LTA 140kW Sidecar
- Adopt DC48V power shelf for various input of voltage
- Liteon designed MCU-based controllers provide more efficient and security communication among upper-level management and internal components
- Designing the CDU as 90cm width affords to place and transport the units in the container more efficiently and conveniently
- Highly compact fan wall design to implement 32 pcs of fans to support high airflow
- 2+1 redundancy for pumps & filters by the integrated modules kits
- Installed 2x finned tube heat exchangers in series and face directly to the incoming air flow
- Introduced the coolant quality monitoring into CDU for pH & conductivity detecting in real
LTA 60kW Sidecar
- Liquid-to-air, not required facility water
- Pump 2+1 redundancy and remote system controller
- 25-micron filters with 1+1 redundancy, on-line serviceable
- MCU-based controller, comply with OCP protocol
- RS485 RTU Modbus, Redfish, IPMI, and Web-based communication

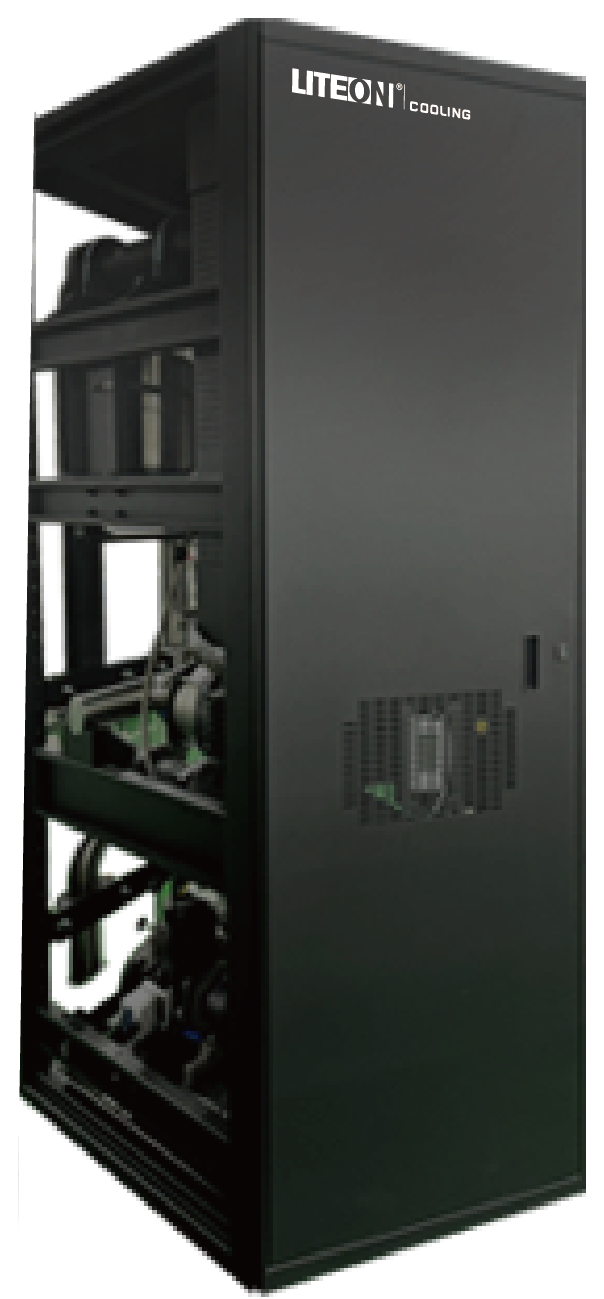

LTL 600kW In-Row CDU
- Pump, 1+1 redundancy and on-line serviceable
- Built-in high-efficiency heat exchanger to ensure cooling capacity
- Integrated 25-micron filters, 1+1 redundancy and on-line serviceable
- Remote monitoring and cybersecurity
- On-line coolant quality monitoring
- Redfish, IPMI, and Web Network Communication
- RS485 RTU Modbus Communication

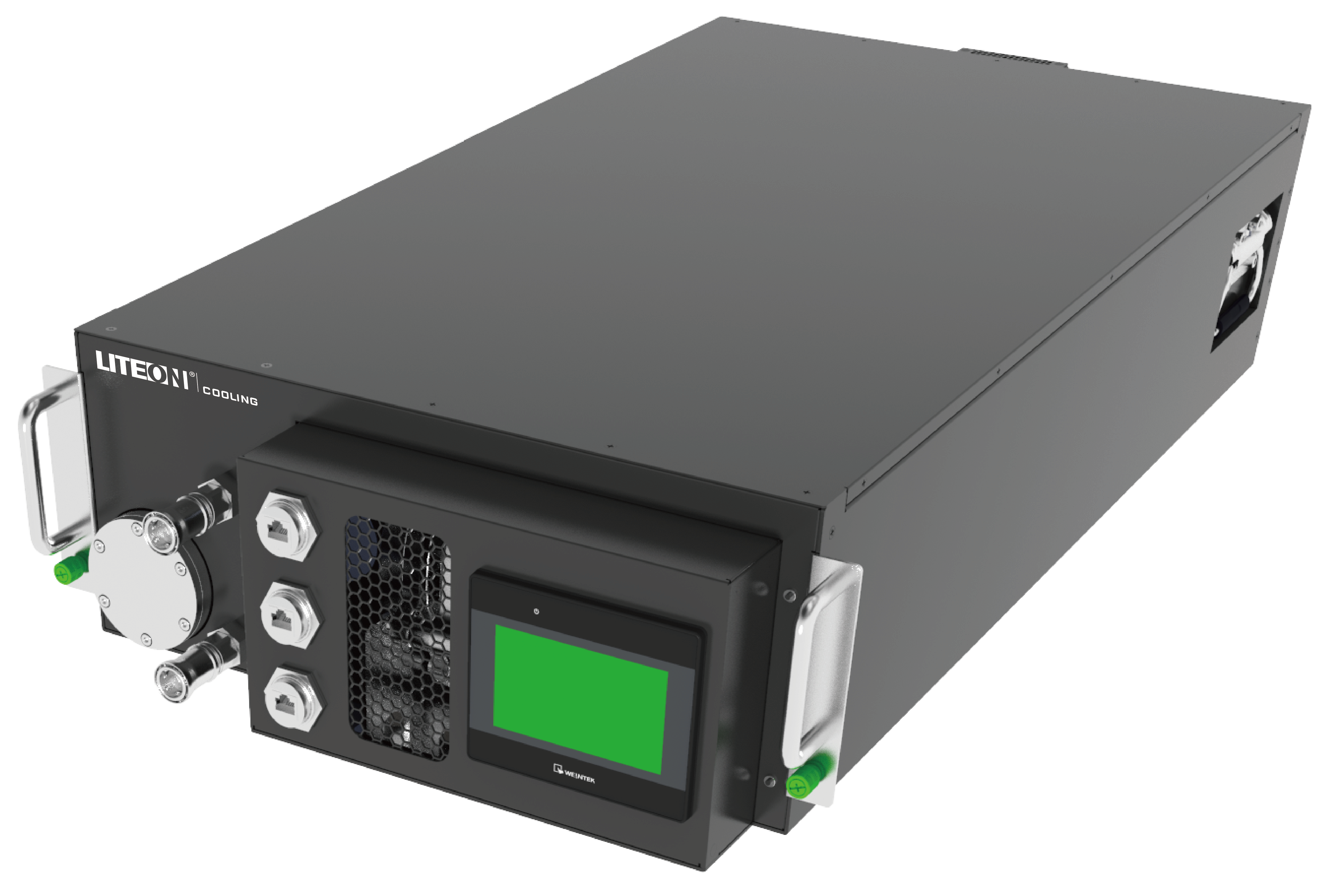

LTL 120kW In-Rack CDU
- Leverage DC48V, no need AC-to-DC PSU
- MCU-based controller for efficient communication with IT rack
- Front HMI for convenient operation
- 1+1 pump redundancy
- Filter to be repaired at the front side during operation
- New PHE for compact size and high heat exchange capacity

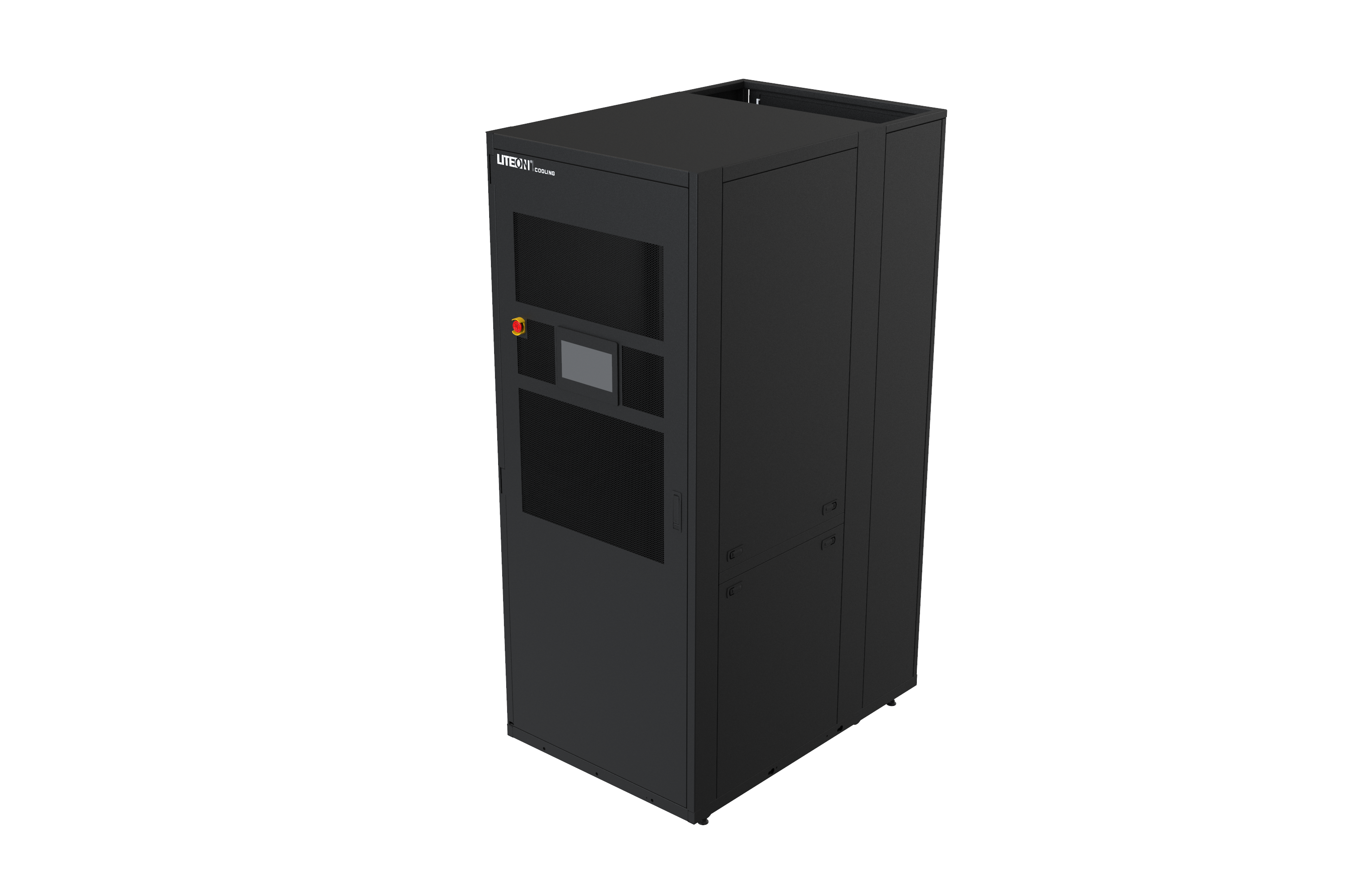

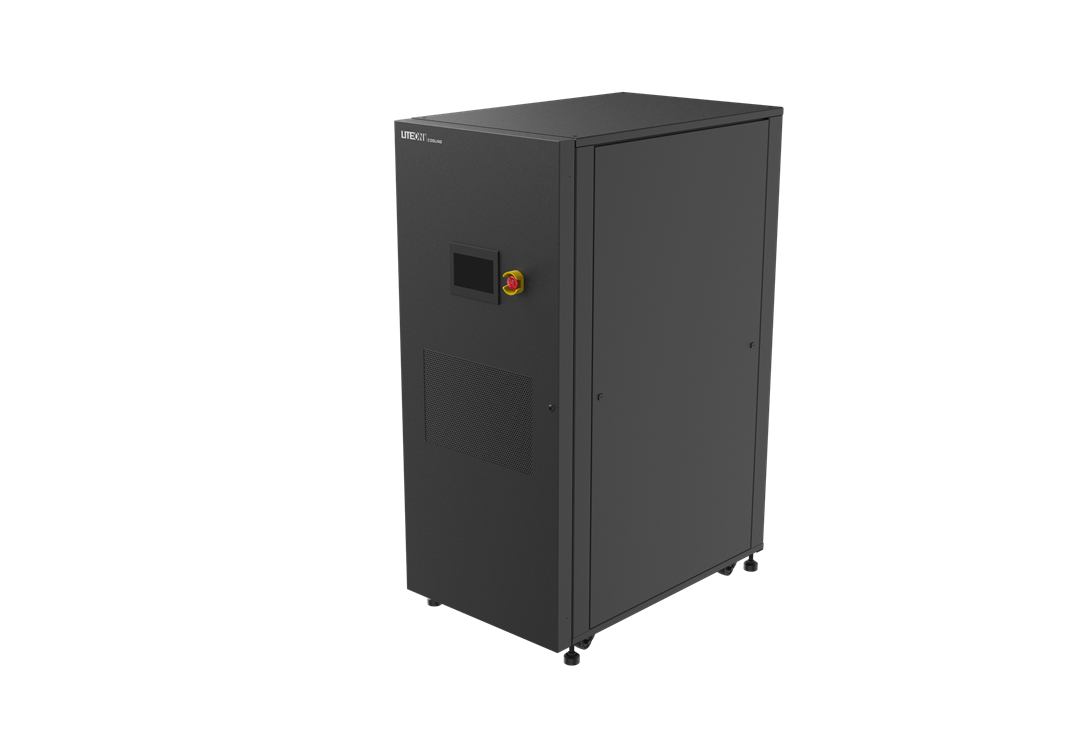

LTL 1.5MW In-Row CDU
- Adapt wide voltage input range for various voltage requirements
- LITEON in-house designed MCU-based controller, Integrated control and remote monitoring
- Modular redundant kit design for easy maintenance and replacement
- 3+1 pump redundancy
- Integrated 25-micron filters, 3+1 redundancy and on-line serviceable
- On-line coolant quality monitoring

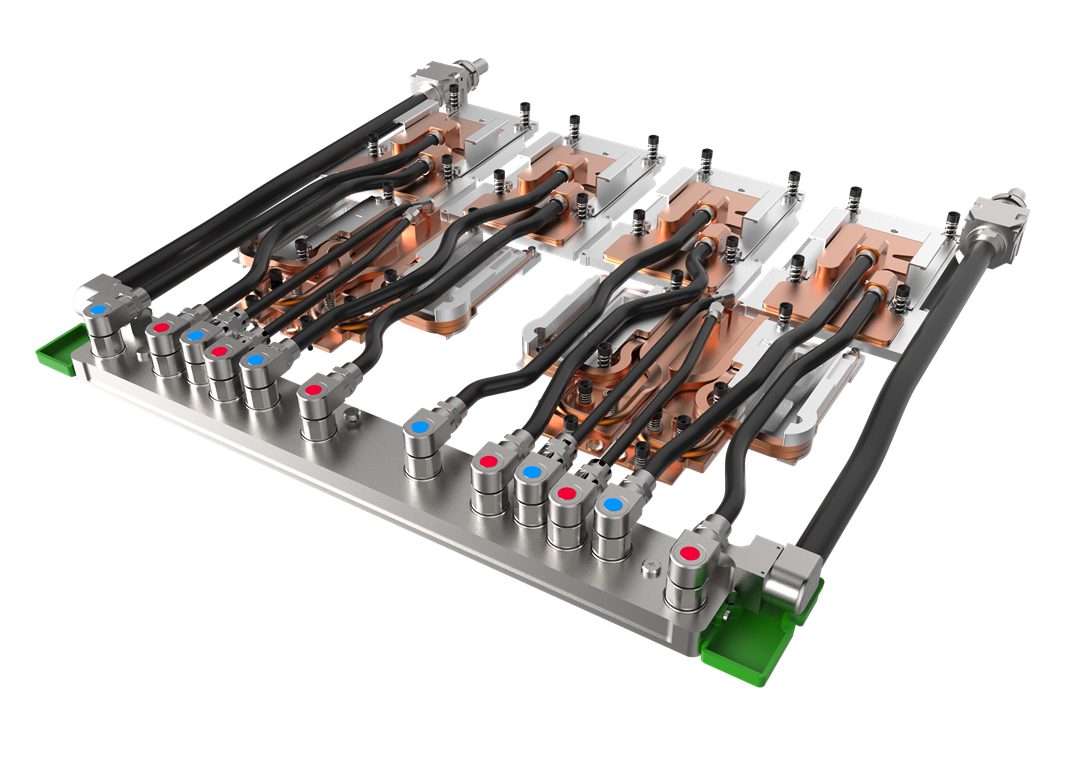

GB300 Cold Plate
- Cooling capacity : 6200W
- Compatible with DI Water/PG25 coolant
- Suitable for GB300 Superchip server and 2U chassis
- Uses UQD & NVQD connectors and stainless steel corrugated tubing
GB200 Cold Plate
- Cooling capacity : 2700W
- Compatible with DI Water/PG25 coolant
- Suitable for GB200 Superchip server and 1U chassis
- Uses UQD connectors and stainless steel corrugated tubing
B200 Cold Plate
- Cooling capacity : 9290W
- Compatible with DI Water/PG25 coolant
- Suitable for Nvidia Blackwell B200 Tensor Core GPUs
- Uses EPDM and Mesh Grid

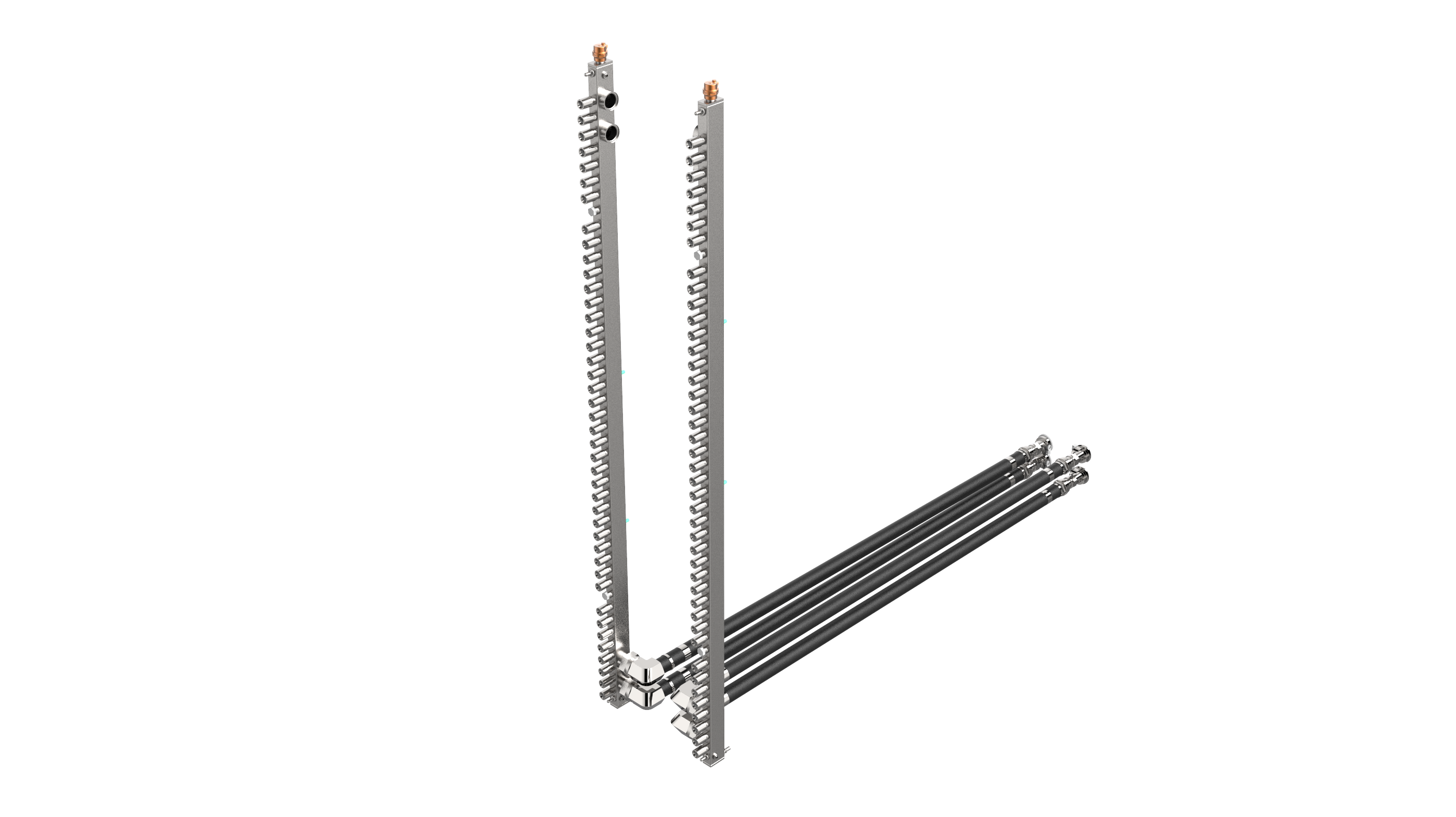

Mainfold （CDM）
- Blind mate manifold design and application
- Compatible with MGX rack and ORV3 rack
- Every QDs pitch are 44.45mm
- Integrated design for simultaneously liquid distribution to multiple servers
- Precision engineering ensures tight connections minimizing the risk of leaks

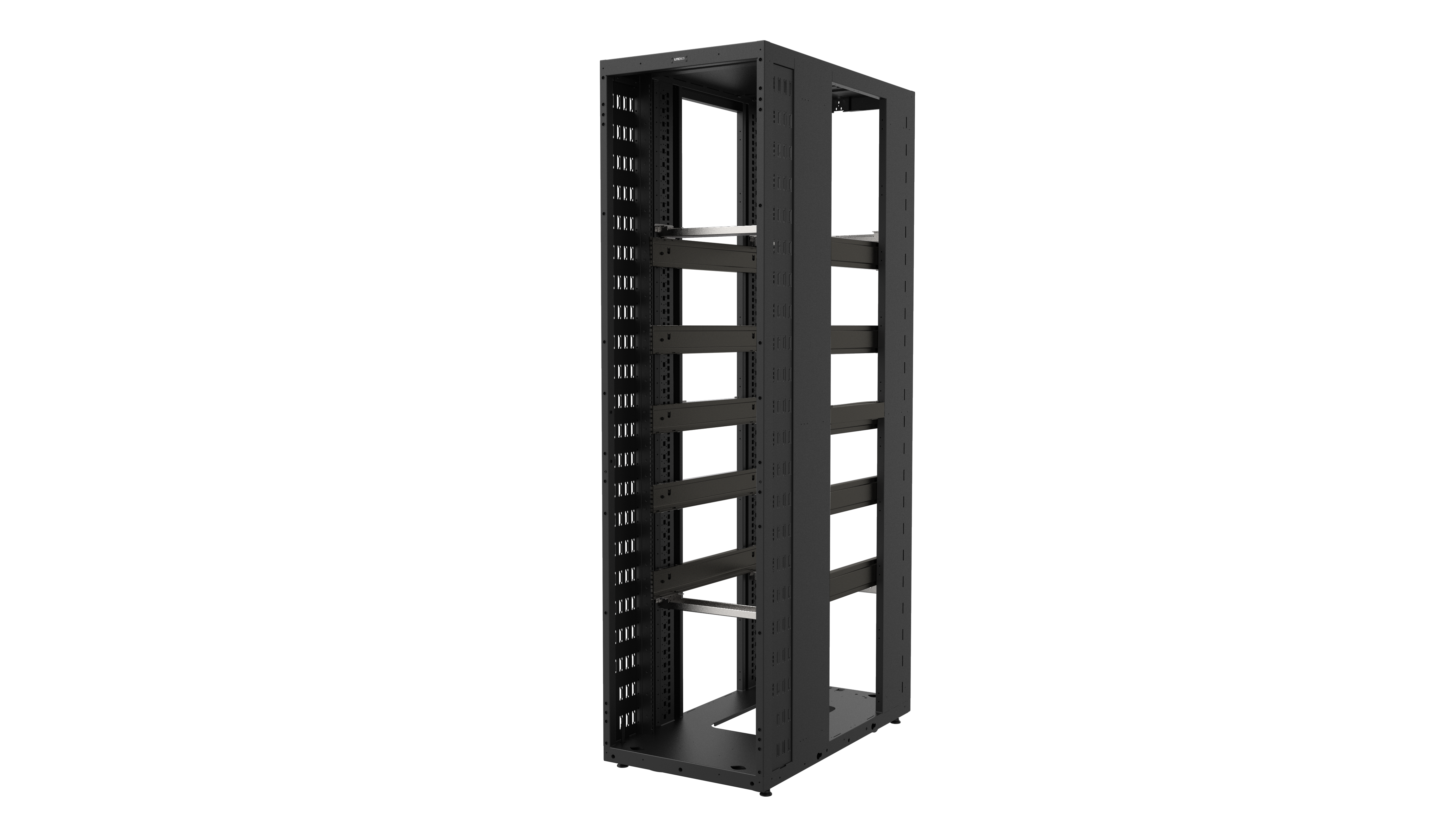

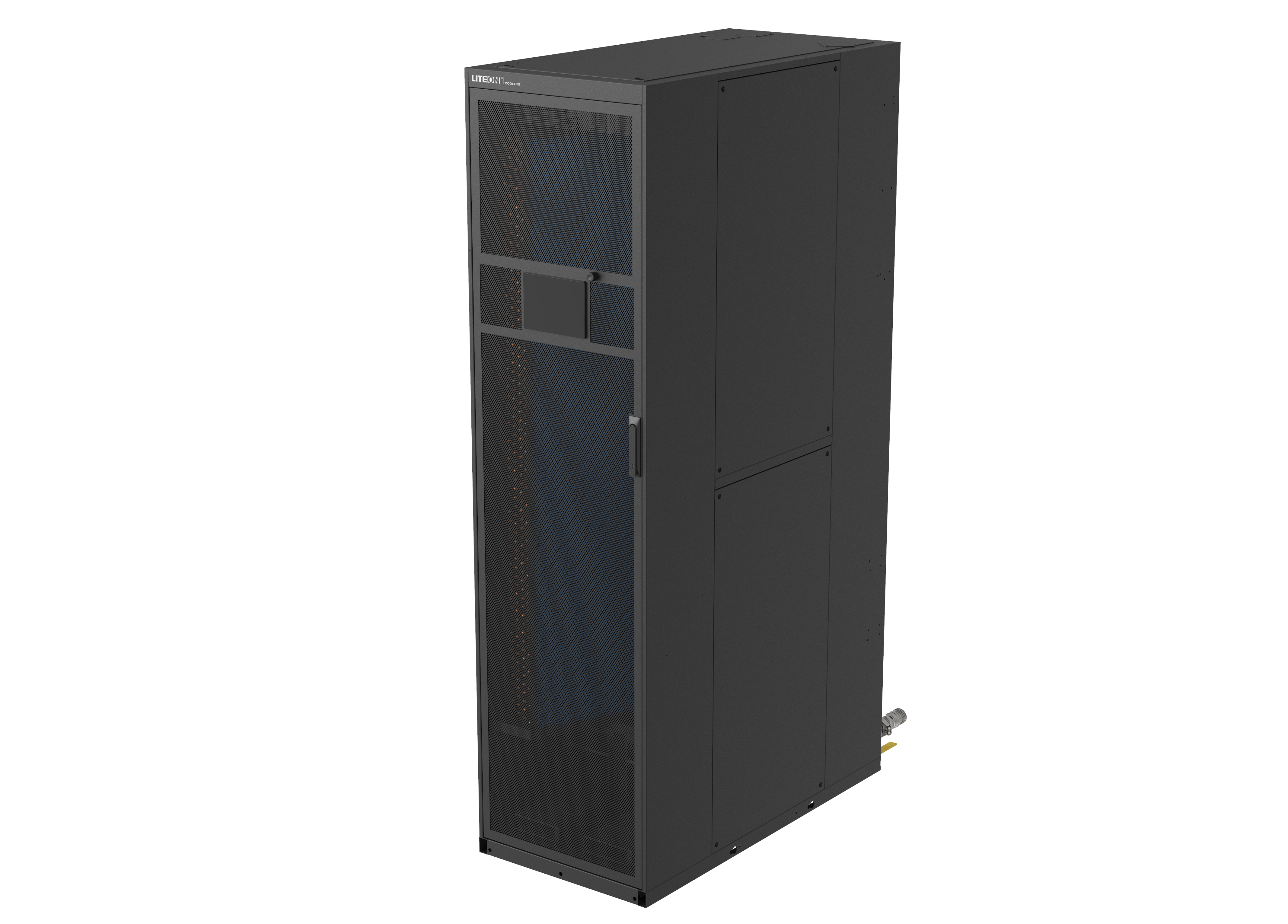

NVIDIA MGX V1.1 Rack
- GB300 & GB200 72NVL Rack solution
- Supports 1,600kg of IT equipment in 48 Rack U
- Configurable DC bus bar architecture, supports up to 48V,1400A

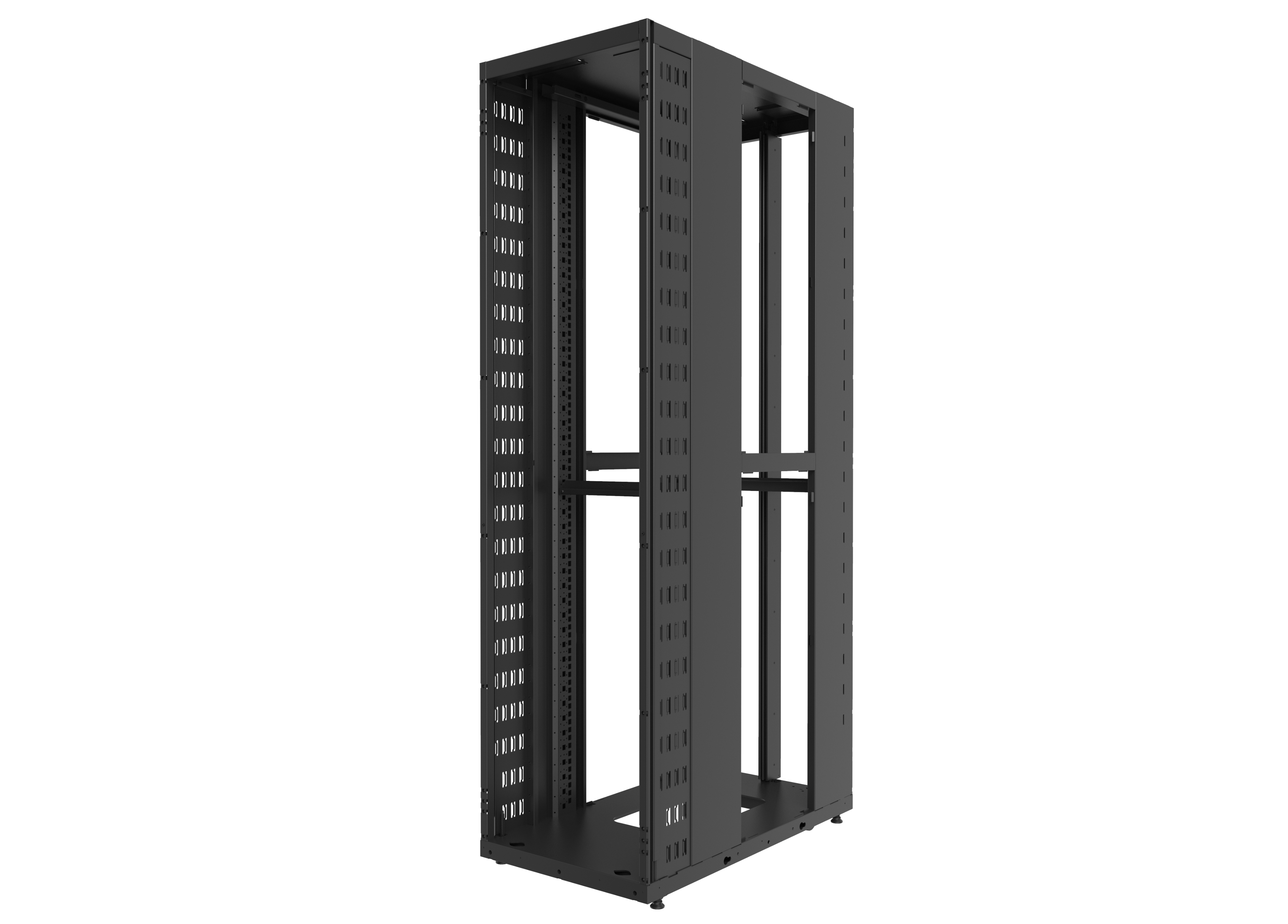

ORV3 Rack
- ORV3-Compliant Rack with 48V Busbar
- Conversion Kit Avalible for Traditional 19-inch EIA
- Supports 1600KG of IT Equipment
- Supports Bus Bar up to 1400A

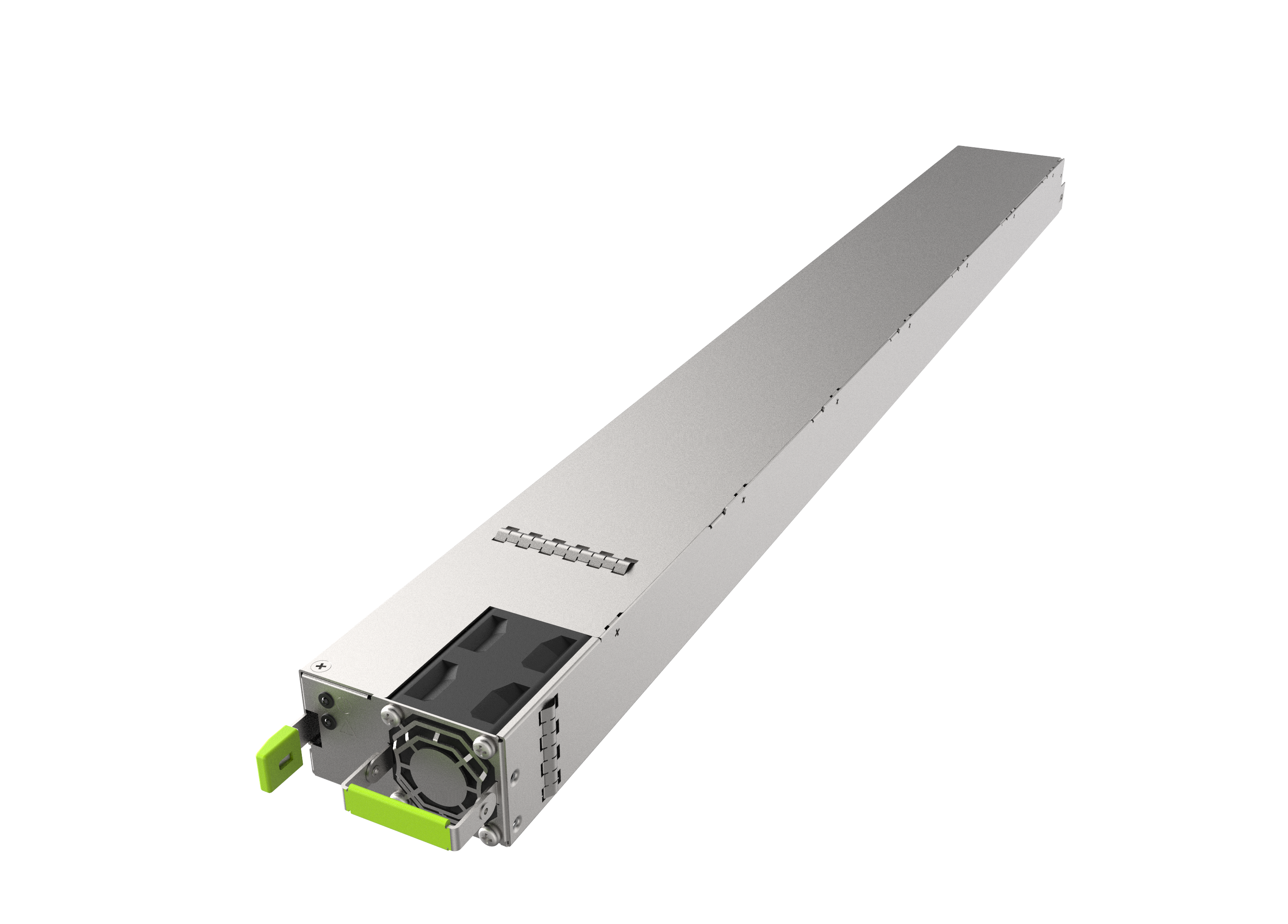

High Power 12kW
- Titanium efficiency
- Peak load 140%,hold up time 10ms
- Density 84.7w / in 3

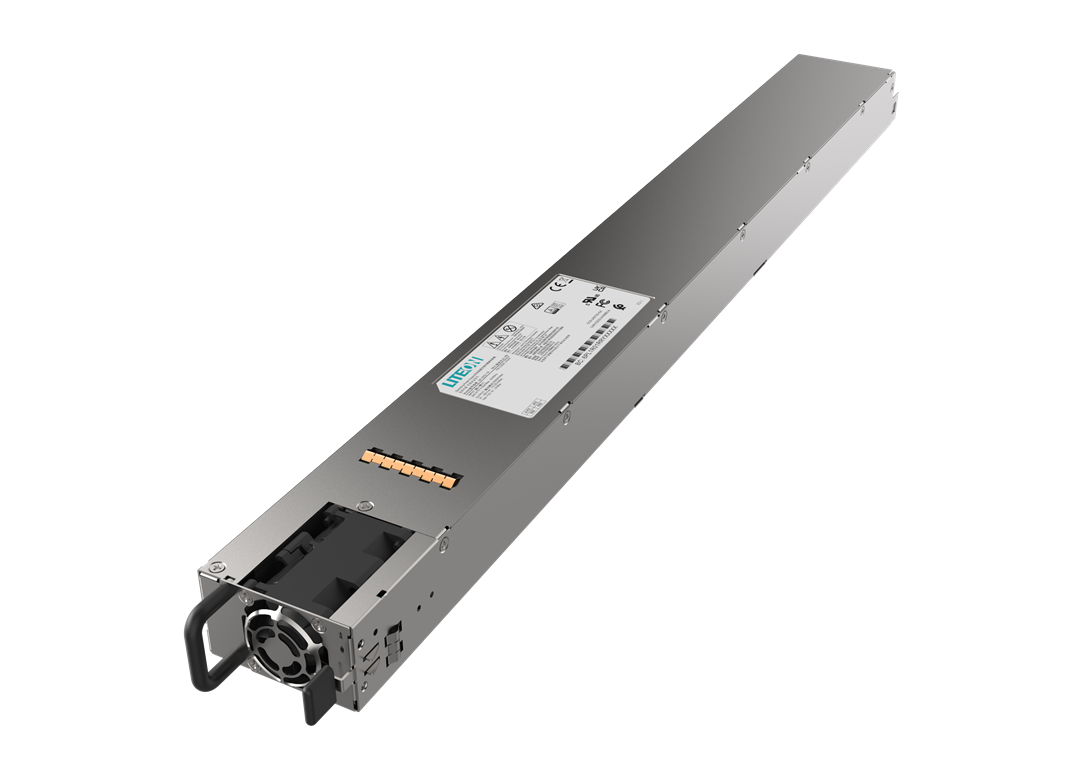

Conductoin Cooled PSU 5600W
- 97.5%+ efficiency
- Cold plate liquid cool
- Holdup time > 20ms
- ITIC compliance
GPU 5200W
- Titanium efficiency
- Active current share + Droop
- ITIC compliance

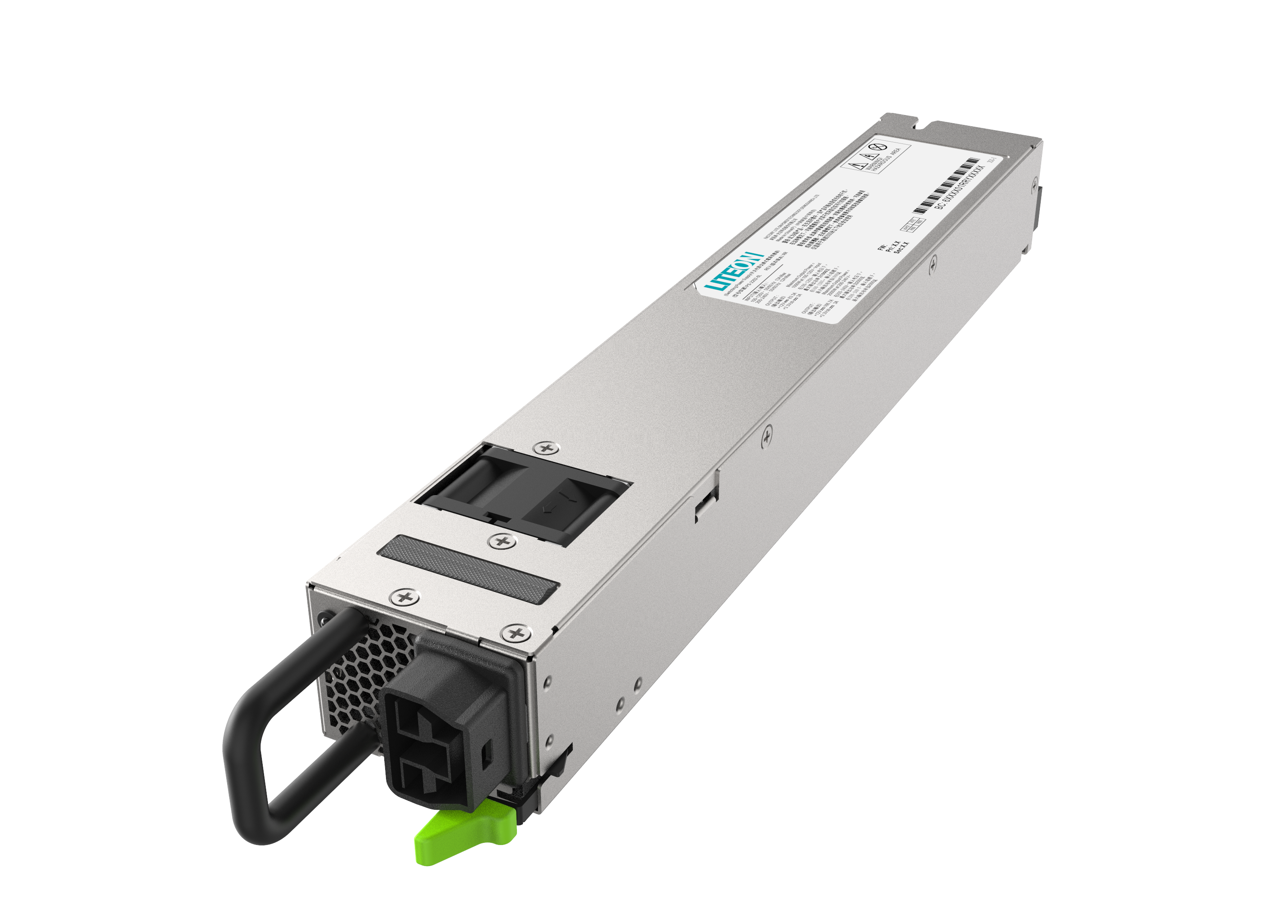

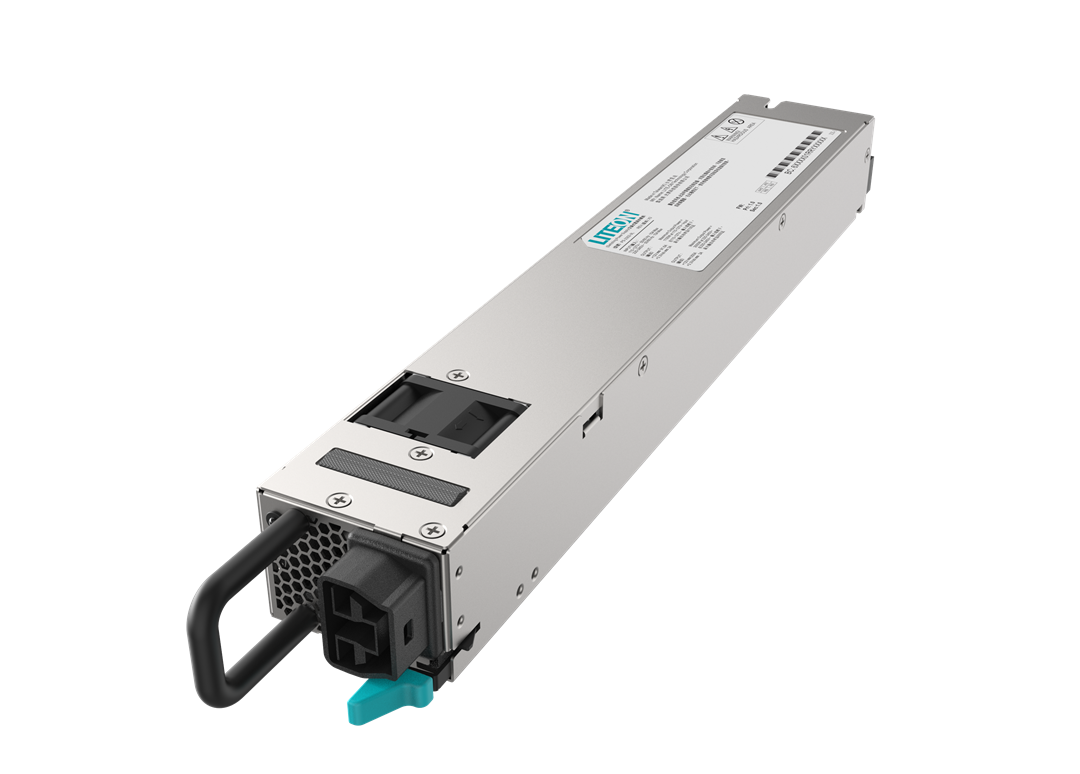

Slim 2000W
- Titanium efficiency
- Bootloader firmware update
- ITIC compliance
- PMBus communication

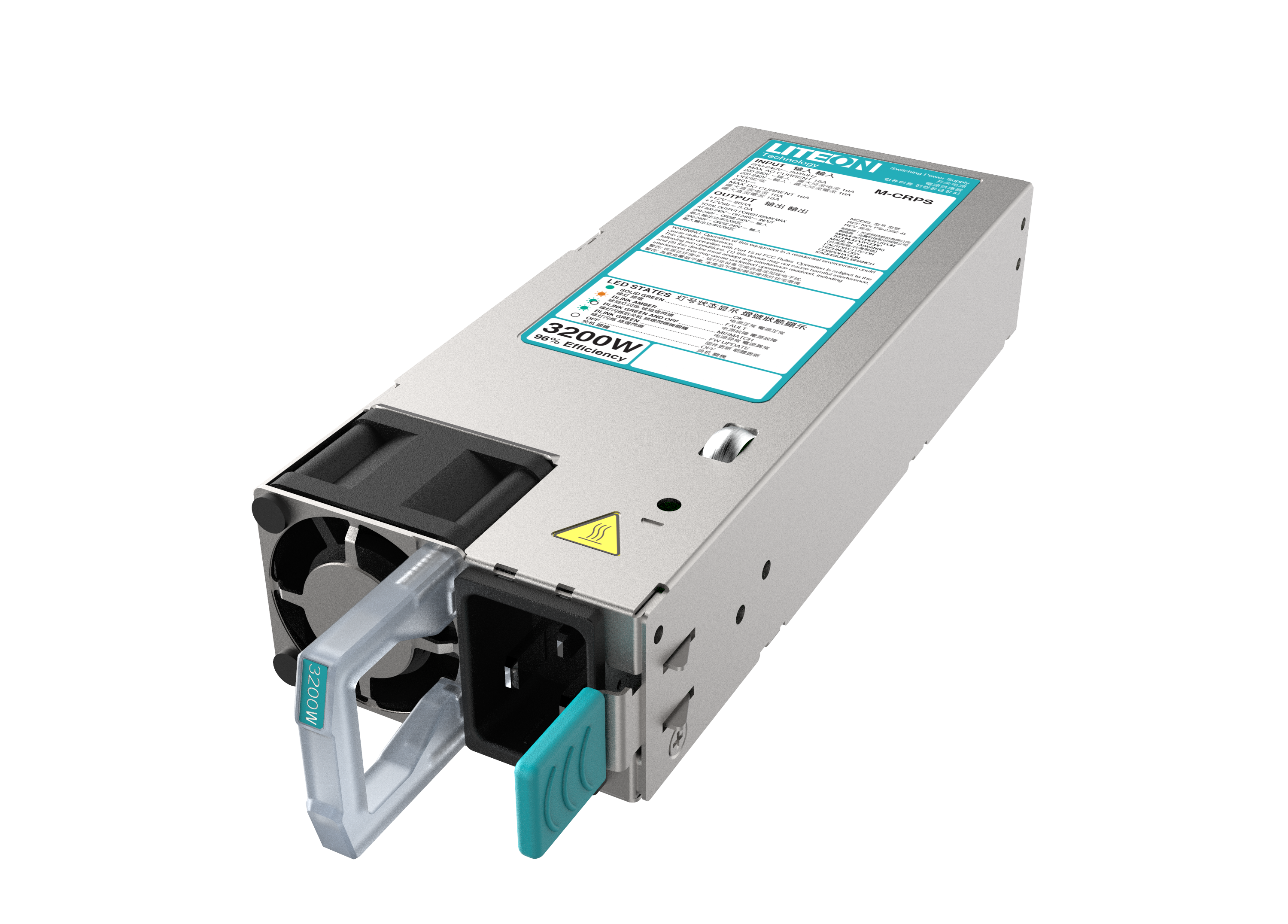

M-CRPS 3200W
- Titanium efficiency
- Security functionality
- Bootloader live update
- ITIC compliance

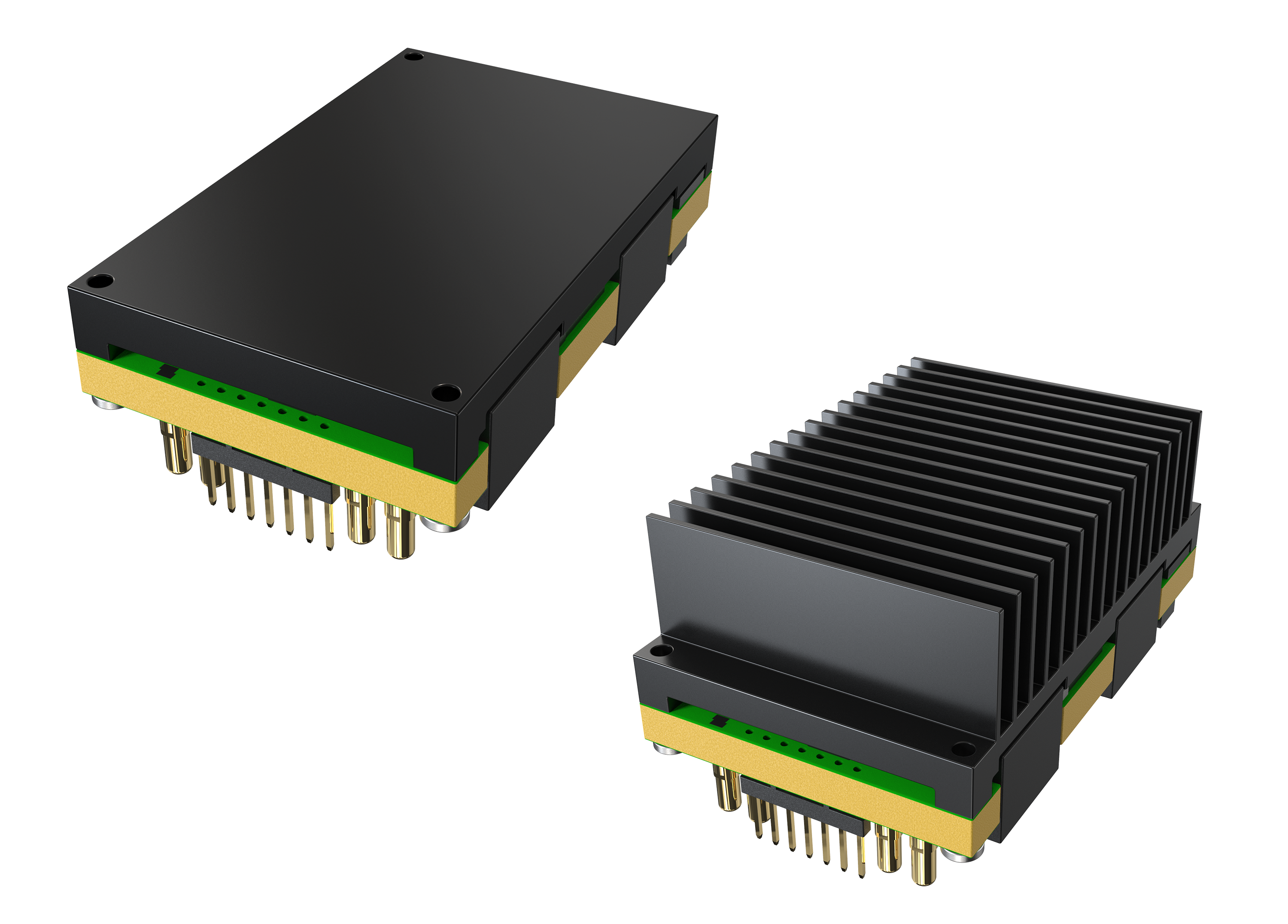

Quarter Brick 2000W
- High Efficiency 97.5%+
- Active Current Share
- Heatsink and Baseplate
- Blackbox functionality
- PMBus Communication

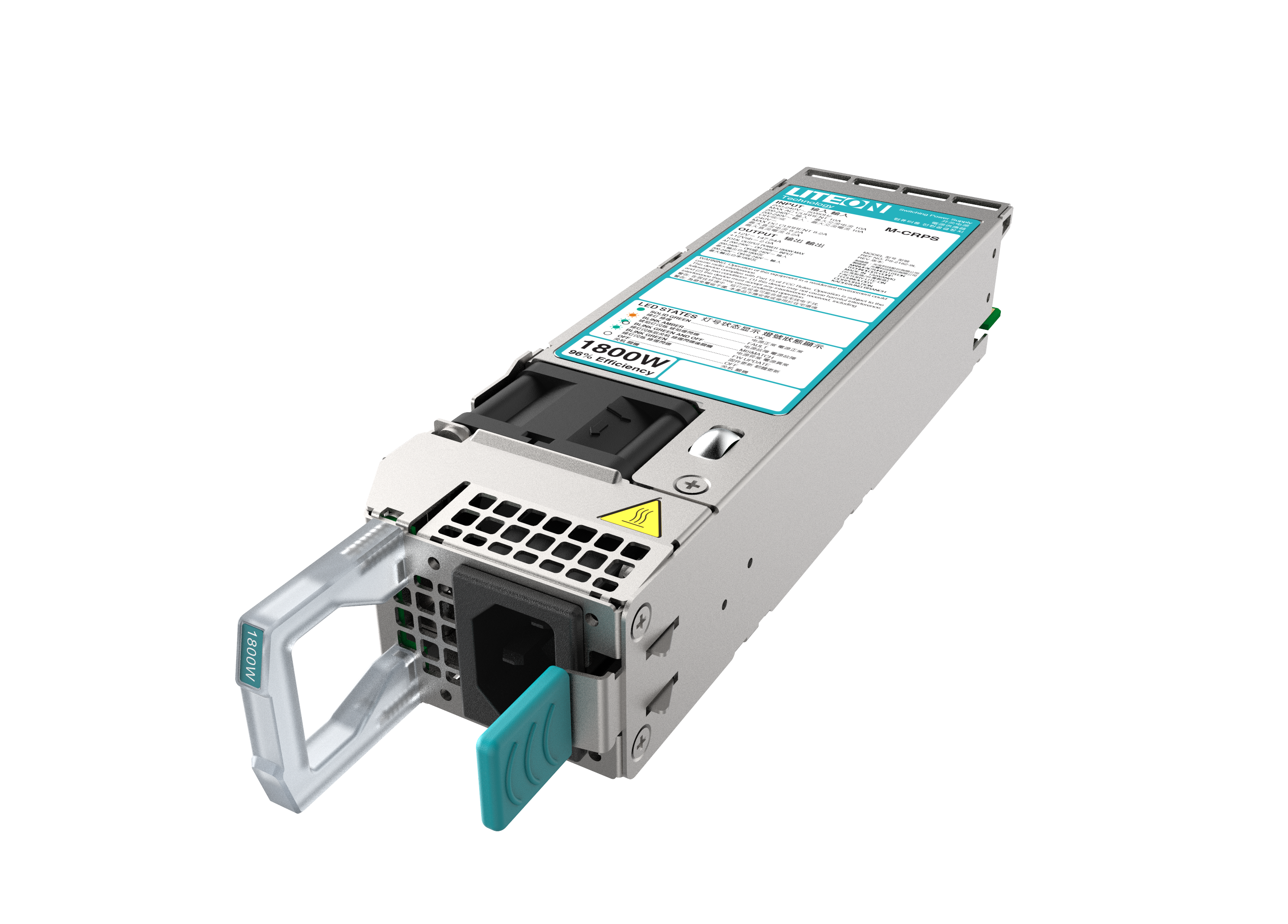

M-CRPS 1800W
- Titanium efficiency
- Security functionality
- Bootloader live update
- ITIC compliance

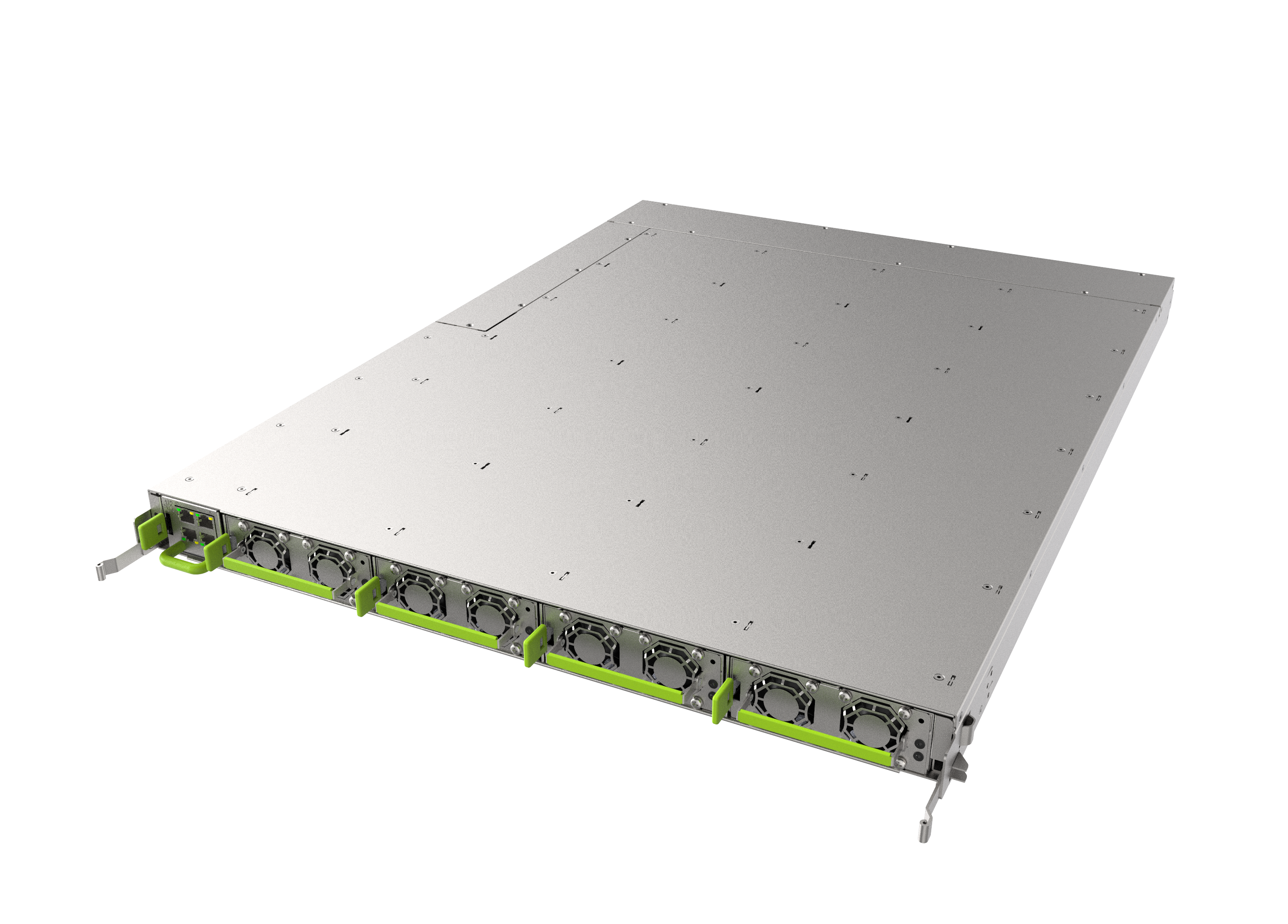

100kW Power Shelf HVDC 400V
- 3Փ 480-600Vac, with dual AC whip provide 25kW HVDC PSU in 4 parallel to output 100kW (400V / 250Amax)
- 1OU / 21-inch width power shelf
- PMM for remote control & power monitoring
- Daisy-Chain function for multiple power shelves parallel operation

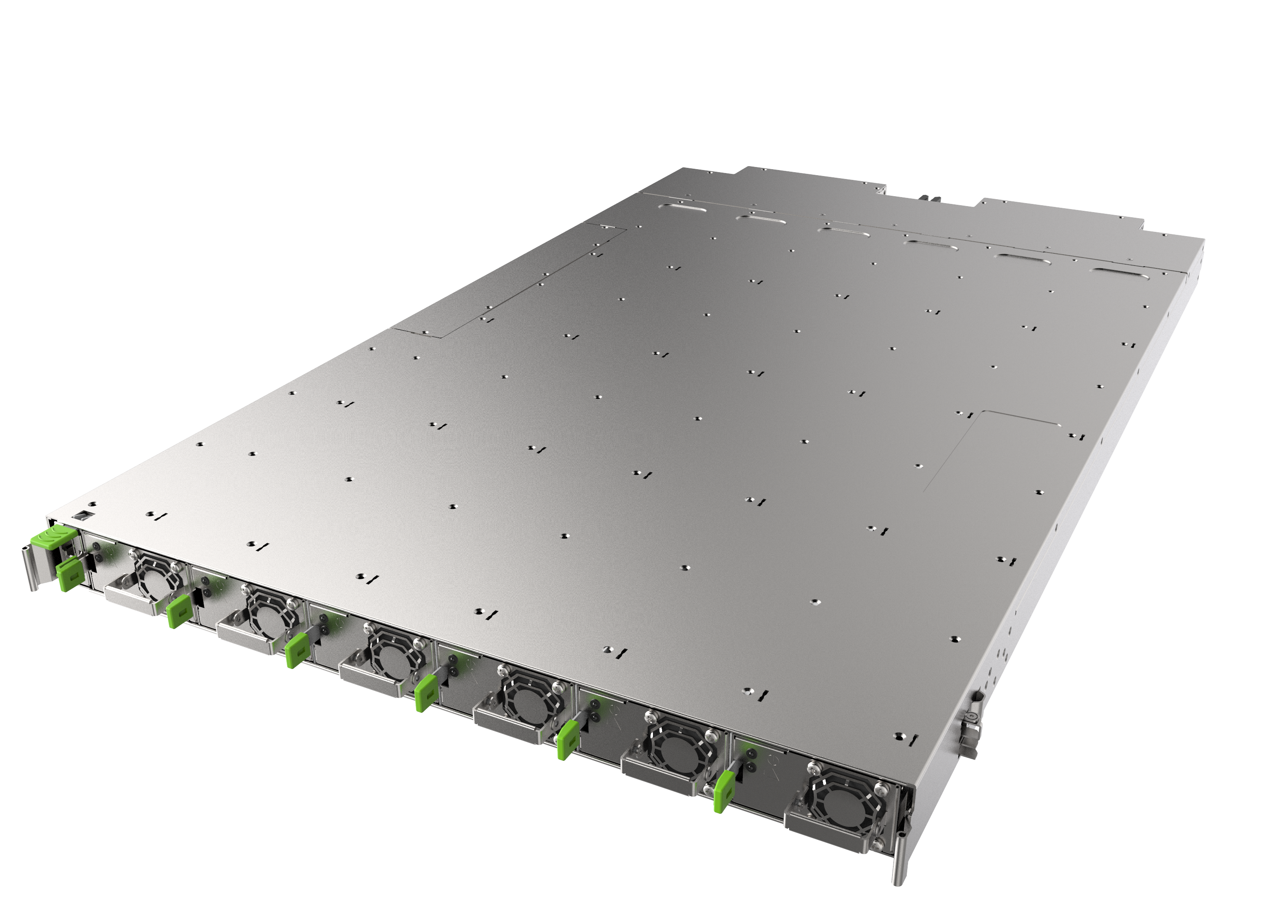

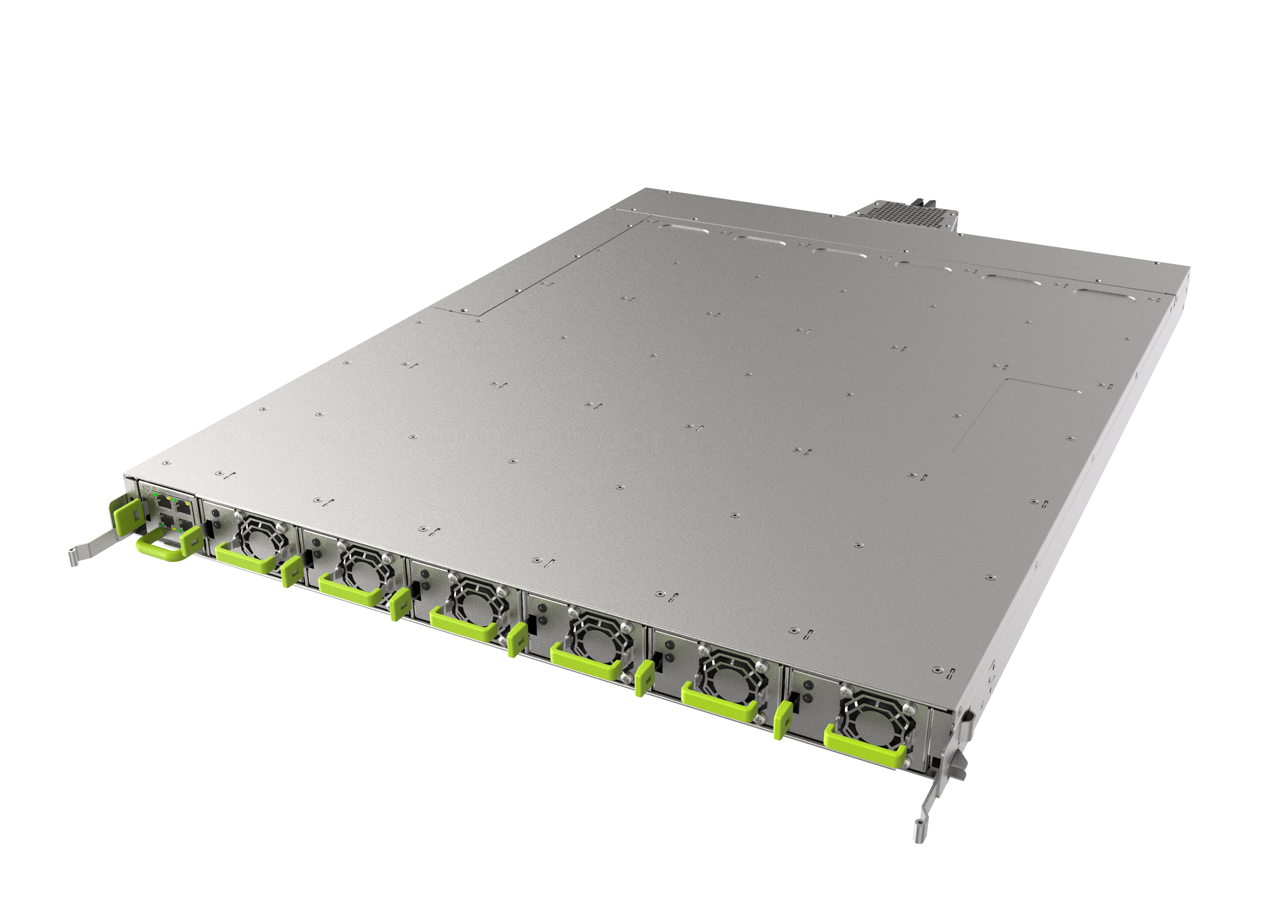

72kW ORV3 Power Shelf 48V
- 3Φ 380-480Vac providing 12kW PSU in 6 parallel to output 72kW (49V / 1470Amax)
- 1OU, 21-inch width power shelf
- PMM for remote control & power monitoring
- Daisy-Chain function for multiple power shelves parallel operation

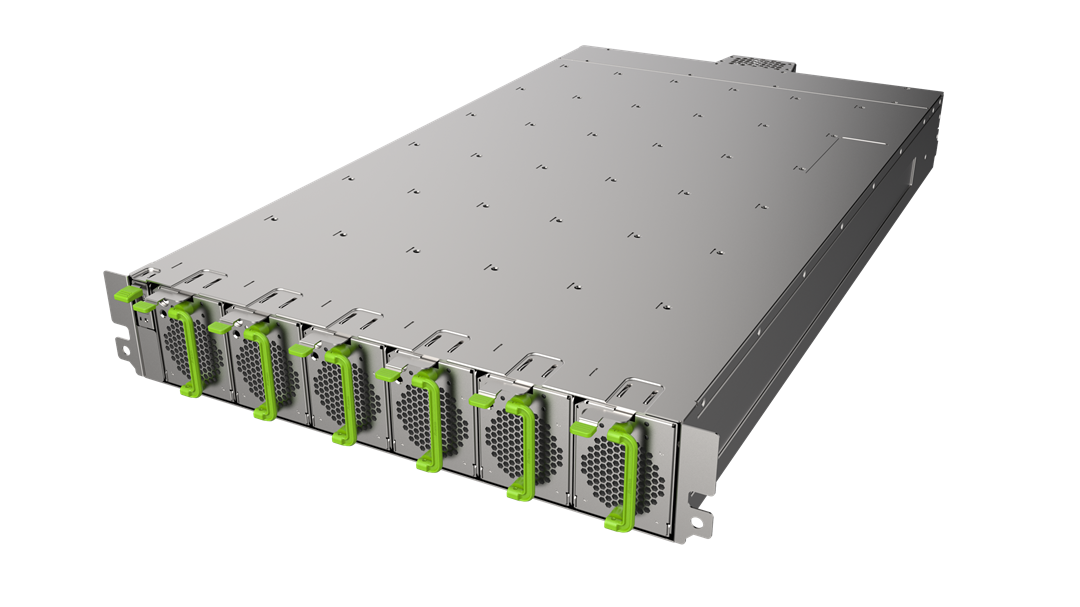

33kW ORV3 Power Shelf 48V
- EIA 21"Rack Compatible
- PMM for remote control & power monitoring
- AC Input Range: 200~277Vac
- Output Voltage: 50V
- Maximum Output Power: 33kW (673.5A Max.)
